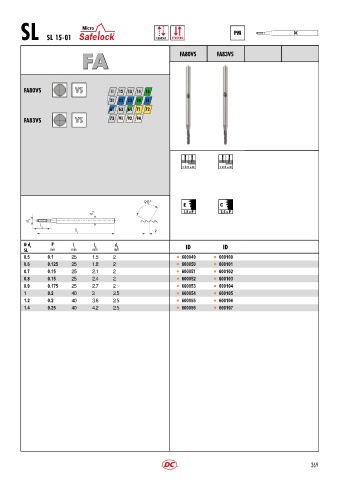

SL SL 15-01 ® CLASSIC SYNCHRO PM DC

FA FA80VS FA83VS

FA80VS VS 11 12 13 14 15
21 22 23 24 51
61 63 71 72

FA83VS VS 73 91 92 94

< 2.5 x D < 2.5 x D

C
d 2 1.5 x P 2.5 x P
d 1
l 2
l P
1
Ø d 1 P l 1 l 2 d 2 ID ID
SL mm mm mm mm
0.5 0.1 25 1.5 2 l 600049 l 600100
0.6 0.125 25 1.8 2 l 600050 l 600101
0.7 0.15 25 2.1 2 l 600051 l 600102
0.8 0.15 25 2.4 2 l 600052 l 600103
0.9 0.175 25 2.7 2 l 600053 l 600104
1 0.2 40 3 2.5 l 600054 l 600105
1.2 0.2 40 3.6 2.5 l 600055 l 600106
1.4 0.25 40 4.2 2.5 l 600056 l 600107
