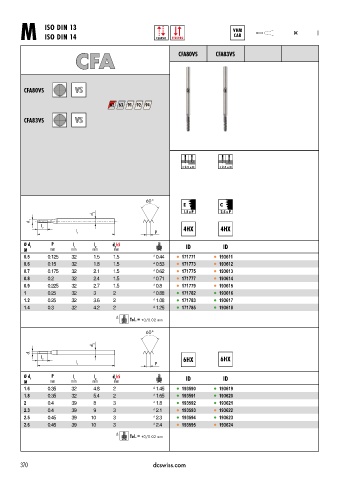

Page 373 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13 VHM
M ISO DIN 14 CLASSIC SYNCHRO CAR DC

CFA CFA80VS CFA83VS

CFA80VS VS

63 91 92 94

CFA83VS VS

< 2.5 x D < 2.5 x D

C
1.5 x P 2.5 x P
d 2
d 1
l 2
l P
1
Ø d 1 P l 1 l 2 d h5 ID ID
2
M mm mm mm mm
0.5 0.125 32 1.5 1.5 ∆ 0.44 l 171771 l 193611
0.6 0.15 32 1.8 1.5 ∆ 0.53 l 171773 l 193612
0.7 0.175 32 2.1 1.5 ∆ 0.62 l 171775 l 193613
0.8 0.2 32 2.4 1.5 ∆ 0.71 l 171777 l 193614
0.9 0.225 32 2.7 1.5 ∆ 0.8 l 171779 l 193615
1 0.25 32 3 2 ∆ 0.88 l 171782 l 193616
1.2 0.25 32 3.6 2 ∆ 1.08 l 171783 l 193617
1.4 0.3 32 4.2 2 ∆ 1.25 l 171785 l 193618

∆
Tol. = +0/0.02 mm

d 2
d 1
l
2
l 1 P
Ø d 1 P l 1 l 2 d h5 ID ID
2
M mm mm mm mm
1.6 0.35 32 4.8 2 ∆ 1.45 l 193590 l 193619
1.8 0.35 32 5.4 2 ∆ 1.65 l 193591 l 193620
2 0.4 39 8 3 ∆ 1.8 l 193592 l 193621
2.3 0.4 39 9 3 ∆ 2.1 l 193593 l 193622
2.5 0.45 39 10 3 ∆ 2.3 l 193594 l 193623
2.6 0.45 39 10 3 ∆ 2.4 l 193595 l 193624
∆
Tol. = +0/0.02 mm
