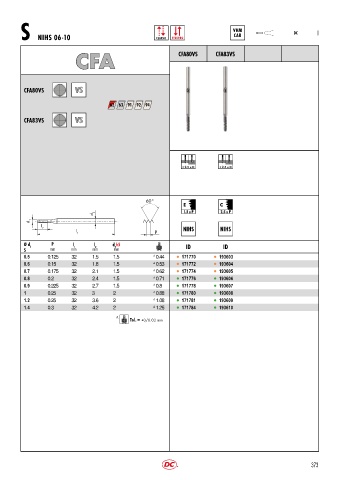

Page 376 - DC_SWISS(Catalogue_TM_ES-EN)

VHM DC
S NIHS 06-10 CLASSIC SYNCHRO CAR

CFA CFA80VS CFA83VS

CFA80VS VS

63 91 92 94

CFA83VS VS

< 2.5 x D < 2.5 x D

C
1.5 x P 2.5 x P
d 2
d 1
l 2
l P NIHS NIHS
1
Ø d 1 P l 1 l 2 d h5 ID ID
2
S mm mm mm mm
0.5 0.125 32 1.5 1.5 ∆ 0.44 l 171770 l 193603
0.6 0.15 32 1.8 1.5 ∆ 0.53 l 171772 l 193604
0.7 0.175 32 2.1 1.5 ∆ 0.62 l 171774 l 193605
0.8 0.2 32 2.4 1.5 ∆ 0.71 l 171776 l 193606
0.9 0.225 32 2.7 1.5 ∆ 0.8 l 171778 l 193607
1 0.25 32 3 2 ∆ 0.88 l 171780 l 193608
1.2 0.25 32 3.6 2 ∆ 1.08 l 171781 l 193609
1.4 0.3 32 4.2 2 ∆ 1.25 l 171784 l 193610

∆
Tol. = +0/0.02 mm
