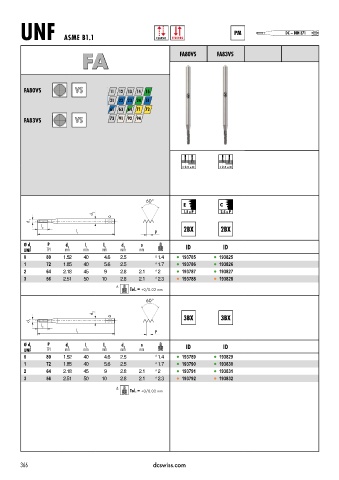

Page 369 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 CLASSIC SYNCHRO PM DC – DIN 371

FA FA80VS FA83VS

FA80VS VS 11 12 13 14 15
21 22 23 24 51
61 63 71 72

FA83VS VS 73 91 92 94

< 2.5 x D < 2.5 x D

C
1.5 x P 2.5 x P
d 2 a
d 1
l
2
l
1 P
Ø d 1 P d 1 l 1 l 2 d 2 a ID ID
UNF TPI mm mm mm mm mm
0 80 1.52 40 4.6 2.5 ∆ 1.4 l 193785 l 193825
1 72 1.85 40 5.6 2.5 ∆ 1.7 l 193786 l 193826
2 64 2.18 45 9 2.8 2.1 ∆ 2 l 193787 l 193827
3 56 2.51 50 10 2.8 2.1 ∆ 2.3 l 193788 l 193828
∆
Tol. = +0/0.02 mm

d 2 a
d 1
l
2
l 1 P
Ø d 1 P d 1 l 1 l 2 d 2 a ID ID
UNF TPI mm mm mm mm mm
0 80 1.52 40 4.6 2.5 ∆ 1.4 l 193789 l 193829
1 72 1.85 40 5.6 2.5 ∆ 1.7 l 193790 l 193830
2 64 2.18 45 9 2.8 2.1 ∆ 2 l 193791 l 193831
3 56 2.51 50 10 2.8 2.1 ∆ 2.3 l 193792 l 193832
∆
Tol. = +0/0.02 mm

366 dcswiss.com
