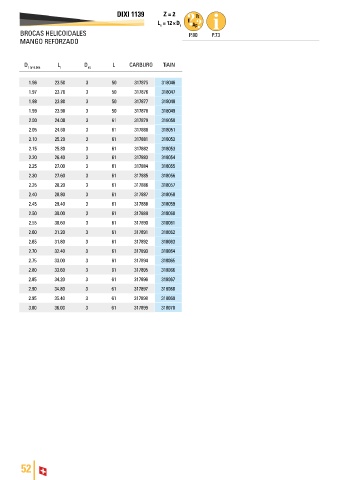

DIXI 1139 Z = 2
L = 12 × D 1
1
BROCAS HELICOIDALES P.80 P.73
MANGO REFORZADO

D L D L CARBURO TiAIN
1 0/-0.004 1 h5

1.96 23.50 3 50 317875 318046
1.97 23.70 3 50 317876 318047

1.98 23.80 3 50 317877 318048
1.99 23.90 3 50 317878 318049
2.00 24.00 3 61 317879 318050
2.05 24.60 3 61 317880 318051
2.10 25.20 3 61 317881 318052
2.15 25.80 3 61 317882 318053
2.20 26.40 3 61 317883 318054
2.25 27.00 3 61 317884 318055
2.30 27.60 3 61 317885 318056
2.35 28.20 3 61 317886 318057
2.40 28.80 3 61 317887 318058
2.45 29.40 3 61 317888 318059
2.50 30.00 3 61 317889 318060
2.55 30.60 3 61 317890 318061
2.60 31.20 3 61 317891 318062
2.65 31.80 3 61 317892 318063
2.70 32.40 3 61 317893 318064
2.75 33.00 3 61 317894 318065
2.80 33.60 3 61 317895 318066
2.85 34.20 3 61 317896 318067

2.90 34.80 3 61 317897 318068
2.95 35.40 3 61 317898 318069
3.00 36.00 3 61 317899 318070
