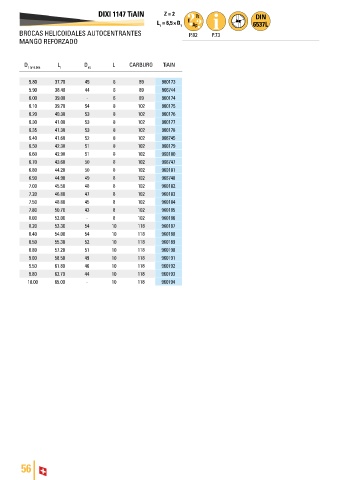

DIXI 1147 TiAIN Z = 2
L = 6,5 × D 1
1
BROCAS HELICOIDALES AUTOCENTRANTES P.82 P.73
MANGO REFORZADO

D L D L CARBURO TiAIN
1 0/-0.004 1 h5

5.80 37.70 45 6 89 960173
5.90 38.40 44 6 89 966744
6.00 39.00 - 6 89 960174
6.10 39.70 54 8 102 960175
6.20 40.30 53 8 102 960176
6.30 41.00 53 8 102 960177
6.35 41.30 53 8 102 960178
6.40 41.60 52 8 102 966745
6.50 42.30 51 8 102 960179
6.60 42.90 51 8 102 960180
6.70 43.60 50 8 102 966747
6.80 44.20 50 8 102 960181
6.90 44.90 49 8 102 966748
7.00 45.50 48 8 102 960182
7.20 46.80 47 8 102 960183
7.50 48.80 45 8 102 960184
7.80 50.70 43 8 102 960185
8.00 52.00 - 8 102 960186
8.20 53.30 54 10 118 960187
8.40 54.00 54 10 118 960188
8.50 55.30 52 10 118 960189
8.80 57.20 51 10 118 960190
9.00 58.50 49 10 118 960191
9.50 61.80 46 10 118 960192
9.80 63.70 44 10 118 960193
10.00 65.00 - 10 118 960194

56
