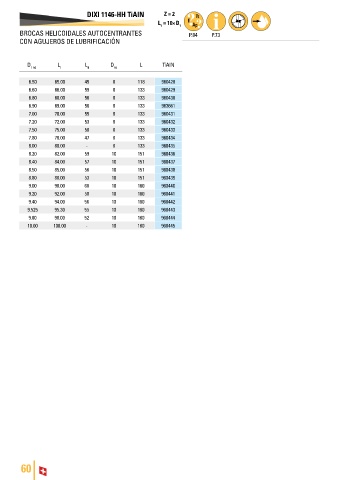

P. 62
DIXI 1146-HH TiAIN Z = 2
L = 10× D 1
1
BROCAS HELICOIDALES AUTOCENTRANTES P.84 P.73
CON AGUJEROS DE LUBRIFICACIÓN
D L L D L TiAIN
1 h6 1 4 h5
6.50 65.00 45 8 118 960428
6.60 66.00 59 8 133 960429
6.80 68.00 56 8 133 960430
6.90 69.00 56 8 133 963661
7.00 70.00 55 8 133 960431
7.20 72.00 53 8 133 960432
7.50 75.00 50 8 133 960433
7.80 78.00 47 8 133 960434
8.00 80.00 - 8 133 960435
8.20 82.00 59 10 151 960436
8.40 84.00 57 10 151 960437
8.50 85.00 56 10 151 960438
8.80 88.00 53 10 151 960439
9.00 90.00 60 10 160 960440
9.20 92.00 58 10 160 960441
9.40 94.00 56 10 160 960442
9.525 95.30 55 10 160 960443
9.80 98.00 52 10 160 960444
10.00 100.00 - 10 160 960445
