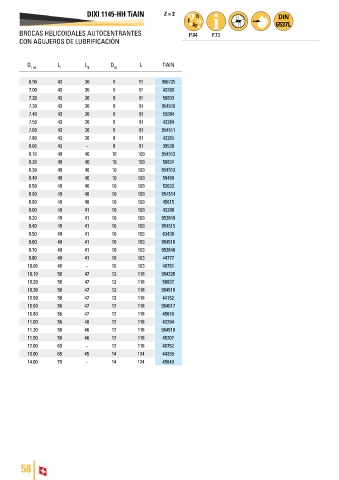

DIXI 1145-HH TiAIN Z = 2

BROCAS HELICOIDALES AUTOCENTRANTES P.84 P.73
CON AGUJEROS DE LUBRIFICACIÓN

D L L D L TiAIN
1 h6 1 4 h5

6.90 43 36 8 91 966725
7.00 43 36 8 91 43283
7.20 43 36 8 91 56833
7.30 43 36 8 91 954510
7.40 43 36 8 91 59384
7.50 43 36 8 91 43284
7.60 43 36 8 91 954511
7.80 43 36 8 91 43285
8.00 43 - 8 91 39530
8.10 49 40 10 103 954512
8.20 49 40 10 103 56834
8.30 49 40 10 103 954513
8.40 49 40 10 103 59469
8.50 49 40 10 103 52633
8.60 49 40 10 103 954514
8.80 49 40 10 103 45615
9.00 49 41 10 103 43288
9.20 49 41 10 103 953849
9.40 49 41 10 103 954515
9.50 49 41 10 103 63430
9.60 49 41 10 103 954516
9.70 49 41 10 103 953846
9.80 49 41 10 103 44777
10.00 49 - 10 103 40751
10.10 56 47 12 118 954326
10.20 56 47 12 118 56837
10.30 56 47 12 118 954518
10.50 56 47 12 118 44152
10.60 56 47 12 118 954517
10.80 56 47 12 118 45616
11.00 56 48 12 118 43294
11.30 58 46 12 118 954519
11.50 58 46 12 118 45207
12.00 60 - 12 118 40752
13.00 65 45 14 124 44339
14.00 70 - 14 124 45649

58
