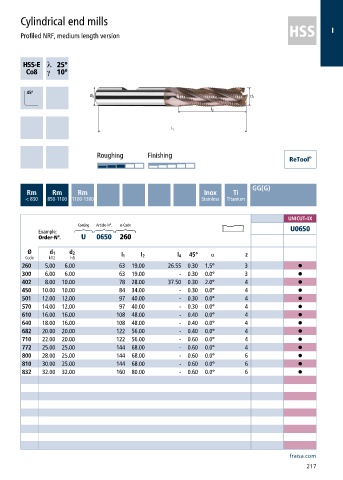

Page 219 - 21-036 APPLITEC catalogue.indb
P. 219
Cylindrical end mills
I
Profiled NRF, medium length version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti
< 850 850-1100 1100-1300 Stainless Titanium
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0650
Order-N°. U 0650 260
Ø d 1 d 2 α
Code k12 h6 l 1 l 2 l 4 45° z
260 5.00 6.00 63 19.00 26.55 0.30 1.5° 3 •
300 6.00 6.00 63 19.00 - 0.30 0.0° 3 •
402 8.00 10.00 78 28.00 37.50 0.30 2.0° 4 •
450 10.00 10.00 84 34.00 - 0.30 0.0° 4 •
501 12.00 12.00 97 40.00 - 0.30 0.0° 4 •
570 14.00 12.00 97 40.00 - 0.30 0.0° 4 •
610 16.00 16.00 108 48.00 - 0.40 0.0° 4 •
640 18.00 16.00 108 48.00 - 0.40 0.0° 4 •
682 20.00 20.00 122 56.00 - 0.40 0.0° 4 •
710 22.00 20.00 122 56.00 - 0.60 0.0° 4 •
772 25.00 25.00 144 68.00 - 0.60 0.0° 4 •
800 28.00 25.00 144 68.00 - 0.60 0.0° 6 •
810 30.00 25.00 144 68.00 - 0.60 0.0° 6 •
832 32.00 32.00 160 80.00 - 0.60 0.0° 6 •
