P. 223

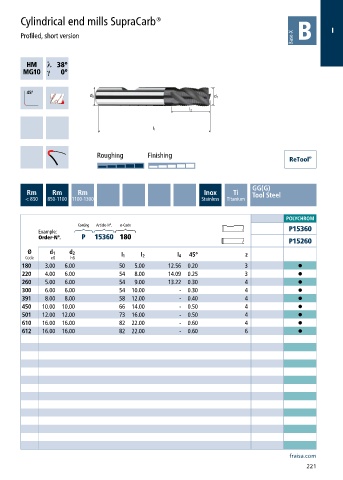

Cylindrical end mills SupraCarb®
I
Profiled, short version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P15360
Order-N°. P 15360 180
P15260
Ø d 1 d 2
Code e8 h6 l 1 l 2 l 4 45° z
180 3.00 6.00 50 5.00 12.56 0.20 3 •
220 4.00 6.00 54 8.00 14.09 0.25 3 •
260 5.00 6.00 54 9.00 13.22 0.30 4 •
300 6.00 6.00 54 10.00 - 0.30 4 •
391 8.00 8.00 58 12.00 - 0.40 4 •
450 10.00 10.00 66 14.00 - 0.50 4 •
501 12.00 12.00 73 16.00 - 0.50 4 •
610 16.00 16.00 82 22.00 - 0.60 4 •
612 16.00 16.00 82 22.00 - 0.60 6 •
fraisa.com
