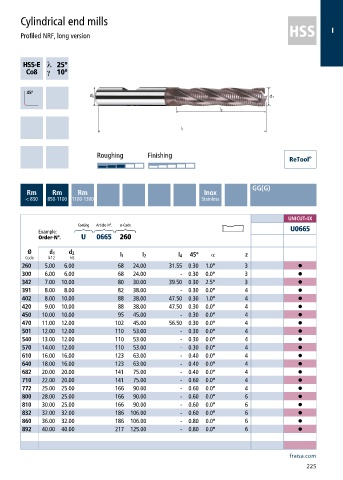

Cylindrical end mills
I
Profiled NRF, long version

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox
< 850 850-1100 1100-1300 Stainless

UNICUT-4X
Coating Article-N°. ø-Code
Example: U0665
Order-N°. U 0665 260
Ø d 1 d 2 α
Code k12 h6 l 1 l 2 l 4 45° z
260 5.00 6.00 68 24.00 31.55 0.30 1.0° 3 •
300 6.00 6.00 68 24.00 - 0.30 0.0° 3 •
342 7.00 10.00 80 30.00 39.50 0.30 2.5° 3 •
391 8.00 8.00 82 38.00 - 0.30 0.0° 4 •
402 8.00 10.00 88 38.00 47.50 0.30 1.0° 4 •
420 9.00 10.00 88 38.00 47.50 0.30 0.0° 4 •
450 10.00 10.00 95 45.00 - 0.30 0.0° 4 •
470 11.00 12.00 102 45.00 56.50 0.30 0.0° 4 •
501 12.00 12.00 110 53.00 - 0.30 0.0° 4 •
540 13.00 12.00 110 53.00 - 0.30 0.0° 4 •
570 14.00 12.00 110 53.00 - 0.30 0.0° 4 •
610 16.00 16.00 123 63.00 - 0.40 0.0° 4 •
640 18.00 16.00 123 63.00 - 0.40 0.0° 4 •
682 20.00 20.00 141 75.00 - 0.40 0.0° 4 •
710 22.00 20.00 141 75.00 - 0.60 0.0° 4 •
772 25.00 25.00 166 90.00 - 0.60 0.0° 4 •
800 28.00 25.00 166 90.00 - 0.60 0.0° 6 •
810 30.00 25.00 166 90.00 - 0.60 0.0° 6 •
832 32.00 32.00 186 106.00 - 0.60 0.0° 6 •
860 36.00 32.00 186 106.00 - 0.80 0.0° 6 •
892 40.00 40.00 217 125.00 - 0.80 0.0° 6 •
