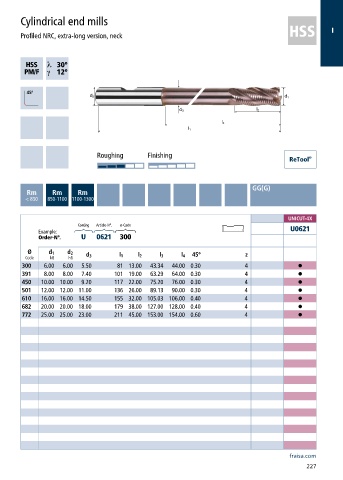

Cylindrical end mills
I
Profiled NRC, extra-long version, neck
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm
< 850 850-1100 1100-1300
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0621
Order-N°. U 0621 300
Ø d 1 d 2
Code k8 h6 d 3 l 1 l 2 l 3 l 4 45° z
300 6.00 6.00 5.50 81 13.00 43.34 44.00 0.30 4 •
391 8.00 8.00 7.40 101 19.00 63.29 64.00 0.30 4 •
450 10.00 10.00 9.20 117 22.00 75.20 76.00 0.30 4 •
501 12.00 12.00 11.00 136 26.00 89.13 90.00 0.30 4 •
610 16.00 16.00 14.50 155 32.00 105.03 106.00 0.40 4 •
682 20.00 20.00 18.00 179 38.00 127.00 128.00 0.40 4 •
772 25.00 25.00 23.00 211 45.00 153.00 154.00 0.60 4 •
