P. 215

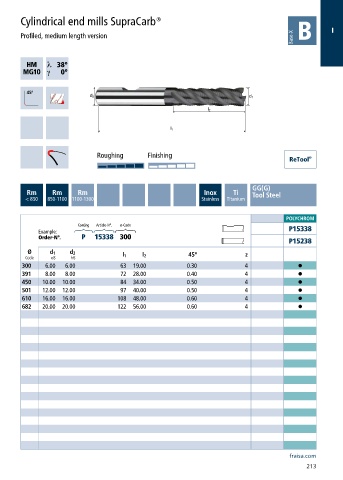

Cylindrical end mills SupraCarb®
I
Profiled, medium length version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P15338
Order-N°. P 15338 300
P15238
Ø d 1 d 2
Code e8 h6 l 1 l 2 45° z
300 6.00 6.00 63 19.00 0.30 4 •
391 8.00 8.00 72 28.00 0.40 4 •
450 10.00 10.00 84 34.00 0.50 4 •
501 12.00 12.00 97 40.00 0.50 4 •
610 16.00 16.00 108 48.00 0.60 4 •
682 20.00 20.00 122 56.00 0.60 4 •
fraisa.com
213
