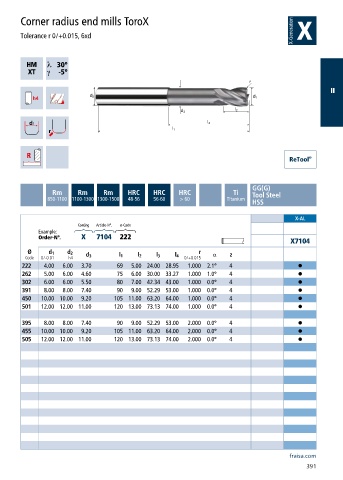

Corner radius end mills ToroX

Tolerance r 0/+0.015, 6xd

h ƍ
a ƍ

II

GG(G)
Rm Rm Rm HRC HRC HRC Ti Tool Steel
850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium
HSS
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7104 222
X7104
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
222 4.00 6.00 3.70 69 5.00 24.00 28.95 1.000 2.1° 4 •
262 5.00 6.00 4.60 75 6.00 30.00 33.27 1.000 1.0° 4 •
302 6.00 6.00 5.50 80 7.00 42.34 43.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 90 9.00 52.29 53.00 1.000 0.0° 4 •
450 10.00 10.00 9.20 105 11.00 63.20 64.00 1.000 0.0° 4 •
501 12.00 12.00 11.00 120 13.00 73.13 74.00 1.000 0.0° 4 •

395 8.00 8.00 7.40 90 9.00 52.29 53.00 2.000 0.0° 4 •
455 10.00 10.00 9.20 105 11.00 63.20 64.00 2.000 0.0° 4 •
505 12.00 12.00 11.00 120 13.00 73.13 74.00 2.000 0.0° 4 •
