P. 395

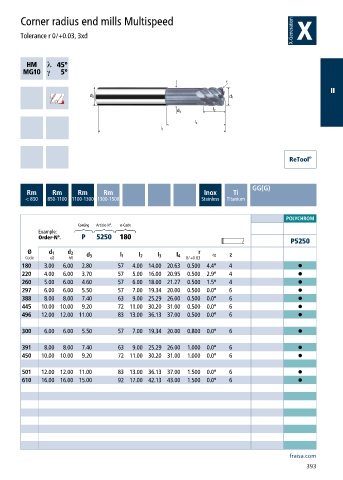

Corner radius end mills Multispeed
Tolerance r 0/+0.03, 3xd
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm Inox Ti
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 5250 180
P5250
Ø d 1 d 2 r α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
180 3.00 6.00 2.80 57 4.00 14.00 20.63 0.500 4.4° 4 •
220 4.00 6.00 3.70 57 5.00 16.00 20.95 0.500 2.9° 4 •
260 5.00 6.00 4.60 57 6.00 18.00 21.27 0.500 1.5° 4 •
297 6.00 6.00 5.50 57 7.00 19.34 20.00 0.500 0.0° 6 •
388 8.00 8.00 7.40 63 9.00 25.29 26.00 0.500 0.0° 6 •
445 10.00 10.00 9.20 72 11.00 30.20 31.00 0.500 0.0° 6 •
496 12.00 12.00 11.00 83 13.00 36.13 37.00 0.500 0.0° 6 •
300 6.00 6.00 5.50 57 7.00 19.34 20.00 0.800 0.0° 6 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 1.000 0.0° 6 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 1.000 0.0° 6 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 1.500 0.0° 6 •
610 16.00 16.00 15.00 92 17.00 42.13 43.00 1.500 0.0° 6 •
