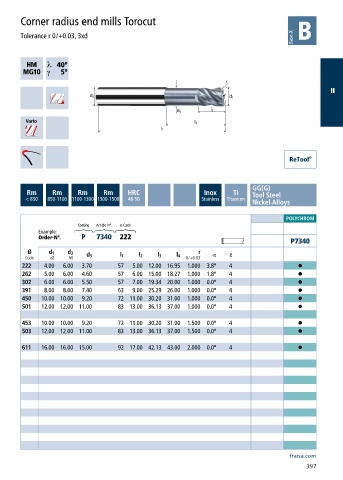

Corner radius end mills Torocut
Tolerance r 0/+0.03, 3xd
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 7340 222
P7340
Ø d 1 d 2 r α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
222 4.00 6.00 3.70 57 5.00 12.00 16.95 1.000 3.8° 4 •
262 5.00 6.00 4.60 57 6.00 15.00 18.27 1.000 1.8° 4 •
302 6.00 6.00 5.50 57 7.00 19.34 20.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 1.000 0.0° 4 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 1.000 0.0° 4 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 1.000 0.0° 4 •
453 10.00 10.00 9.20 72 11.00 30.20 31.00 1.500 0.0° 4 •
503 12.00 12.00 11.00 83 13.00 36.13 37.00 1.500 0.0° 4 •
611 16.00 16.00 15.00 92 17.00 42.13 43.00 2.000 0.0° 4 •
