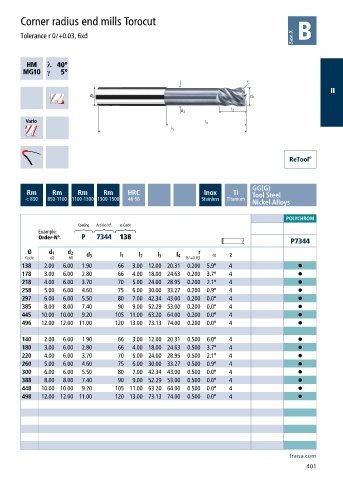

Corner radius end mills Torocut

Tolerance r 0/+0.03, 6xd

h ƍ
a ƍ

II

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 7344 138
P7344
Ø d 1 d 2 r α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
138 2.00 6.00 1.90 66 3.00 12.00 20.31 0.200 5.9° 4 •
178 3.00 6.00 2.80 66 4.00 18.00 24.63 0.200 3.7° 4 •
218 4.00 6.00 3.70 70 5.00 24.00 28.95 0.200 2.1° 4 •
258 5.00 6.00 4.60 75 6.00 30.00 33.27 0.200 0.9° 4 •
297 6.00 6.00 5.50 80 7.00 42.34 43.00 0.200 0.0° 4 •
385 8.00 8.00 7.40 90 9.00 52.29 53.00 0.200 0.0° 4 •
445 10.00 10.00 9.20 105 11.00 63.20 64.00 0.200 0.0° 4 •
496 12.00 12.00 11.00 120 13.00 73.13 74.00 0.200 0.0° 4 •
140 2.00 6.00 1.90 66 3.00 12.00 20.31 0.500 6.0° 4 •
180 3.00 6.00 2.80 66 4.00 18.00 24.63 0.500 3.7° 4 •
220 4.00 6.00 3.70 70 5.00 24.00 28.95 0.500 2.1° 4 •
260 5.00 6.00 4.60 75 6.00 30.00 33.27 0.500 0.9° 4 •
300 6.00 6.00 5.50 80 7.00 42.34 43.00 0.500 0.0° 4 •
388 8.00 8.00 7.40 90 9.00 52.29 53.00 0.500 0.0° 4 •
448 10.00 10.00 9.20 105 11.00 63.20 64.00 0.500 0.0° 4 •
498 12.00 12.00 11.00 120 13.00 73.13 74.00 0.500 0.0° 4 •
