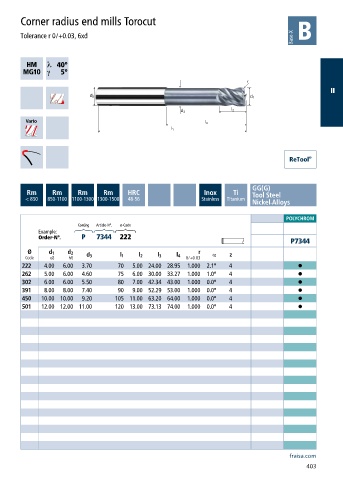

Page 405 - 21-036 APPLITEC catalogue.indb
P. 405
Corner radius end mills Torocut
Tolerance r 0/+0.03, 6xd
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 7344 222
P7344
Ø d 1 d 2 r α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
222 4.00 6.00 3.70 70 5.00 24.00 28.95 1.000 2.1° 4 •
262 5.00 6.00 4.60 75 6.00 30.00 33.27 1.000 1.0° 4 •
302 6.00 6.00 5.50 80 7.00 42.34 43.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 90 9.00 52.29 53.00 1.000 0.0° 4 •
450 10.00 10.00 9.20 105 11.00 63.20 64.00 1.000 0.0° 4 •
501 12.00 12.00 11.00 120 13.00 73.13 74.00 1.000 0.0° 4 •
fraisa.com
