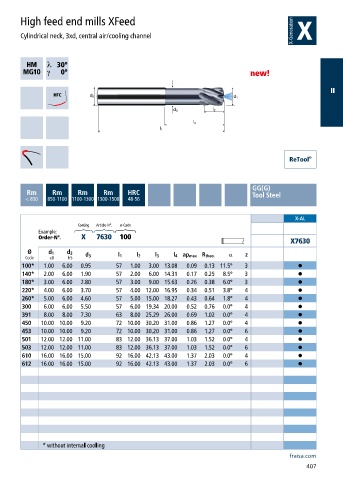

High feed end mills XFeed

Cylindrical neck, 3xd, central air/cooling channel

h ƍ
a ƍ new!

II

GG(G)
Rm Rm Rm Rm HRC Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7630 100
X7630
Ø d 1 d 2
new d 3 l 1 l 2 l 3 l 4 ap max R theo. α z
Code e8 h5
new 100* 1.00 6.00 0.95 57 1.00 3.00 13.08 0.09 0.13 11.5° 3 •
new 140* 2.00 6.00 1.90 57 2.00 6.00 14.31 0.17 0.25 8.5° 3 •
new 180* 3.00 6.00 2.80 57 3.00 9.00 15.63 0.26 0.38 6.0° 3 •
new 220* 4.00 6.00 3.70 57 4.00 12.00 16.95 0.34 0.51 3.8° 4 •
new 260* 5.00 6.00 4.60 57 5.00 15.00 18.27 0.43 0.64 1.8° 4 •
new 300 6.00 6.00 5.50 57 6.00 19.34 20.00 0.52 0.76 0.0° 4 •
new 391 8.00 8.00 7.30 63 8.00 25.29 26.00 0.69 1.02 0.0° 4 •
new 450 10.00 10.00 9.20 72 10.00 30.20 31.00 0.86 1.27 0.0° 4 •
new 453 10.00 10.00 9.20 72 10.00 30.20 31.00 0.86 1.27 0.0° 6 •
new 501 12.00 12.00 11.00 83 12.00 36.13 37.00 1.03 1.52 0.0° 4 •
new 503 12.00 12.00 11.00 83 12.00 36.13 37.00 1.03 1.52 0.0° 6 •
new 610 16.00 16.00 15.00 92 16.00 42.13 43.00 1.37 2.03 0.0° 4 •
new 612 16.00 16.00 15.00 92 16.00 42.13 43.00 1.37 2.03 0.0° 6 •

* without internal cooling
