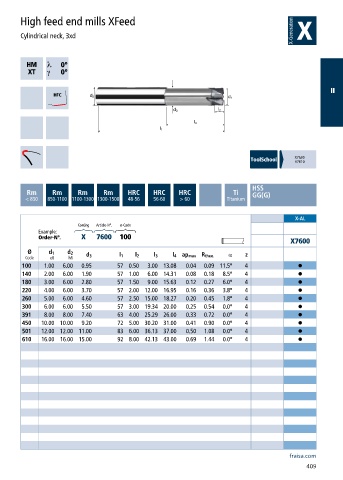

High feed end mills XFeed

Cylindrical neck, 3xd

h ƍ
a ƍ

II

X7630
H7610

HSS
Rm Rm Rm Rm HRC HRC HRC Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7600 100
X7600
Ø d 1 d 2 α z
Code e8 h6 d 3 l 1 l 2 l 3 l 4 ap max R theo.
100 1.00 6.00 0.95 57 0.50 3.00 13.08 0.04 0.09 11.5° 4 •
140 2.00 6.00 1.90 57 1.00 6.00 14.31 0.08 0.18 8.5° 4 •
180 3.00 6.00 2.80 57 1.50 9.00 15.63 0.12 0.27 6.0° 4 •
220 4.00 6.00 3.70 57 2.00 12.00 16.95 0.16 0.36 3.8° 4 •
260 5.00 6.00 4.60 57 2.50 15.00 18.27 0.20 0.45 1.8° 4 •
300 6.00 6.00 5.50 57 3.00 19.34 20.00 0.25 0.54 0.0° 4 •
391 8.00 8.00 7.40 63 4.00 25.29 26.00 0.33 0.72 0.0° 4 •
450 10.00 10.00 9.20 72 5.00 30.20 31.00 0.41 0.90 0.0° 4 •
501 12.00 12.00 11.00 83 6.00 36.13 37.00 0.50 1.08 0.0° 4 •
610 16.00 16.00 15.00 92 8.00 42.13 43.00 0.69 1.44 0.0° 4 •
