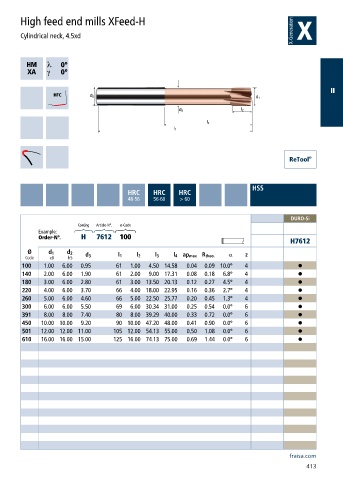

High feed end mills XFeed-H

Cylindrical neck, 4.5xd

h ƍ
a ƍ

II

HSS
HRC HRC HRC
48-56 56-60 > 60

DURO-Si
Coating Article-N°. ø-Code
Example:
Order-N°. H 7612 100
H7612
Ø d 1 d 2 α
Code e8 h5 d 3 l 1 l 2 l 3 l 4 ap max R theo. z
100 1.00 6.00 0.95 61 1.00 4.50 14.58 0.04 0.09 10.0° 4 •
140 2.00 6.00 1.90 61 2.00 9.00 17.31 0.08 0.18 6.8° 4 •
180 3.00 6.00 2.80 61 3.00 13.50 20.13 0.12 0.27 4.5° 4 •
220 4.00 6.00 3.70 66 4.00 18.00 22.95 0.16 0.36 2.7° 4 •
260 5.00 6.00 4.60 66 5.00 22.50 25.77 0.20 0.45 1.3° 4 •
300 6.00 6.00 5.50 69 6.00 30.34 31.00 0.25 0.54 0.0° 6 •
391 8.00 8.00 7.40 80 8.00 39.29 40.00 0.33 0.72 0.0° 6 •
450 10.00 10.00 9.20 90 10.00 47.20 48.00 0.41 0.90 0.0° 6 •
501 12.00 12.00 11.00 105 12.00 54.13 55.00 0.50 1.08 0.0° 6 •
610 16.00 16.00 15.00 125 16.00 74.13 75.00 0.69 1.44 0.0° 6 •
