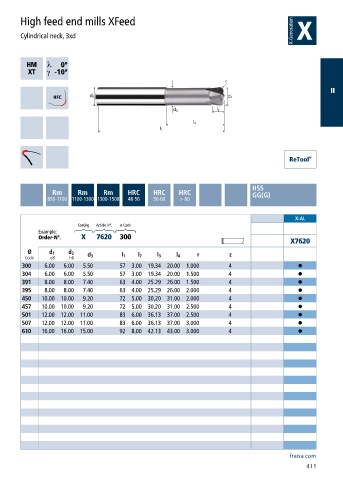

High feed end mills XFeed
Cylindrical neck, 3xd
h ƍ
a ƍ
II
HSS
Rm Rm Rm HRC HRC HRC GG(G)
850-1100 1100-1300 1300-1500 48-56 56-60 > 60
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7620 300
X7620
Ø d 1 d 2
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
300 6.00 6.00 5.50 57 3.00 19.34 20.00 1.000 4 •
304 6.00 6.00 5.50 57 3.00 19.34 20.00 1.500 4 •
391 8.00 8.00 7.40 63 4.00 25.29 26.00 1.500 4 •
395 8.00 8.00 7.40 63 4.00 25.29 26.00 2.000 4 •
450 10.00 10.00 9.20 72 5.00 30.20 31.00 2.000 4 •
457 10.00 10.00 9.20 72 5.00 30.20 31.00 2.500 4 •
501 12.00 12.00 11.00 83 6.00 36.13 37.00 2.500 4 •
507 12.00 12.00 11.00 83 6.00 36.13 37.00 3.000 4 •
610 16.00 16.00 15.00 92 8.00 42.13 43.00 3.000 4 •
