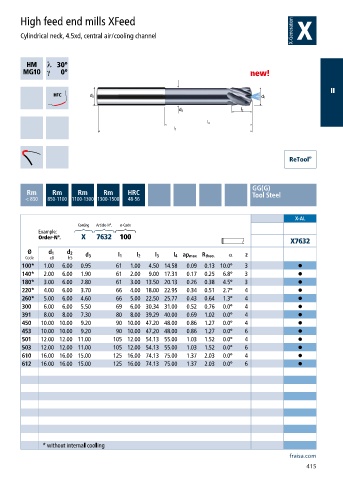

High feed end mills XFeed

Cylindrical neck, 4.5xd, central air/cooling channel

h ƍ
a ƍ new!

II

GG(G)
Rm Rm Rm Rm HRC Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7632 100
X7632
Ø d 1 d 2
new d 3 l 1 l 2 l 3 l 4 ap max R theo. α z
Code e8 h5
new 100* 1.00 6.00 0.95 61 1.00 4.50 14.58 0.09 0.13 10.0° 3 •
new 140* 2.00 6.00 1.90 61 2.00 9.00 17.31 0.17 0.25 6.8° 3 •
new 180* 3.00 6.00 2.80 61 3.00 13.50 20.13 0.26 0.38 4.5° 3 •
new 220* 4.00 6.00 3.70 66 4.00 18.00 22.95 0.34 0.51 2.7° 4 •
new 260* 5.00 6.00 4.60 66 5.00 22.50 25.77 0.43 0.64 1.3° 4 •
new 300 6.00 6.00 5.50 69 6.00 30.34 31.00 0.52 0.76 0.0° 4 •
new 391 8.00 8.00 7.30 80 8.00 39.29 40.00 0.69 1.02 0.0° 4 •
new 450 10.00 10.00 9.20 90 10.00 47.20 48.00 0.86 1.27 0.0° 4 •
new 453 10.00 10.00 9.20 90 10.00 47.20 48.00 0.86 1.27 0.0° 6 •
new 501 12.00 12.00 11.00 105 12.00 54.13 55.00 1.03 1.52 0.0° 4 •
new 503 12.00 12.00 11.00 105 12.00 54.13 55.00 1.03 1.52 0.0° 6 •
new 610 16.00 16.00 15.00 125 16.00 74.13 75.00 1.37 2.03 0.0° 4 •
new 612 16.00 16.00 15.00 125 16.00 74.13 75.00 1.37 2.03 0.0° 6 •

* without internal cooling
