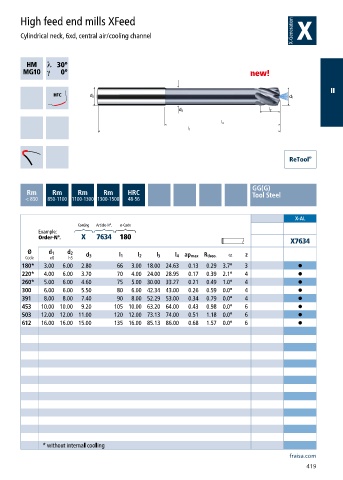

Page 421 - 21-036 APPLITEC catalogue.indb

High feed end mills XFeed

Cylindrical neck, 6xd, central air/cooling channel

h ƍ
a ƍ new!

II

GG(G)
Rm Rm Rm Rm HRC Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7634 180
X7634
Ø d 1 d 2
new d 3 l 1 l 2 l 3 l 4 ap max R theo. α z
Code e8 h5
new 180* 3.00 6.00 2.80 66 3.00 18.00 24.63 0.13 0.29 3.7° 3 •
new 220* 4.00 6.00 3.70 70 4.00 24.00 28.95 0.17 0.39 2.1° 4 •
new 260* 5.00 6.00 4.60 75 5.00 30.00 33.27 0.21 0.49 1.0° 4 •
new 300 6.00 6.00 5.50 80 6.00 42.34 43.00 0.26 0.59 0.0° 4 •
new 391 8.00 8.00 7.40 90 8.00 52.29 53.00 0.34 0.79 0.0° 4 •
new 453 10.00 10.00 9.20 105 10.00 63.20 64.00 0.43 0.98 0.0° 6 •
new 503 12.00 12.00 11.00 120 12.00 73.13 74.00 0.51 1.18 0.0° 6 •
new 612 16.00 16.00 15.00 135 16.00 85.13 86.00 0.68 1.57 0.0° 6 •

* without internal cooling
fraisa.com
419
