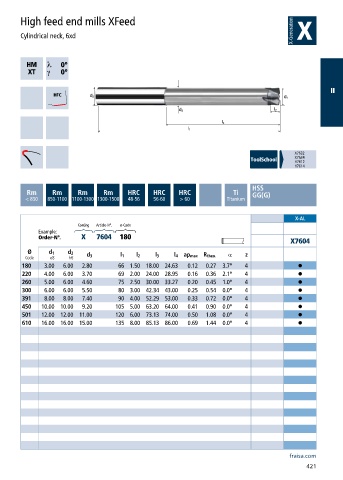

High feed end mills XFeed
Cylindrical neck, 6xd
h ƍ
a ƍ
II
X7632
X7634
H7612
H7614
HSS
Rm Rm Rm Rm HRC HRC HRC Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7604 180
X7604
Ø d 1 d 2 α z
Code e8 h6 d 3 l 1 l 2 l 3 l 4 ap max R theo.
180 3.00 6.00 2.80 66 1.50 18.00 24.63 0.12 0.27 3.7° 4 •
220 4.00 6.00 3.70 69 2.00 24.00 28.95 0.16 0.36 2.1° 4 •
260 5.00 6.00 4.60 75 2.50 30.00 33.27 0.20 0.45 1.0° 4 •
300 6.00 6.00 5.50 80 3.00 42.34 43.00 0.25 0.54 0.0° 4 •
391 8.00 8.00 7.40 90 4.00 52.29 53.00 0.33 0.72 0.0° 4 •
450 10.00 10.00 9.20 105 5.00 63.20 64.00 0.41 0.90 0.0° 4 •
501 12.00 12.00 11.00 120 6.00 73.13 74.00 0.50 1.08 0.0° 4 •
610 16.00 16.00 15.00 135 8.00 85.13 86.00 0.69 1.44 0.0° 4 •
