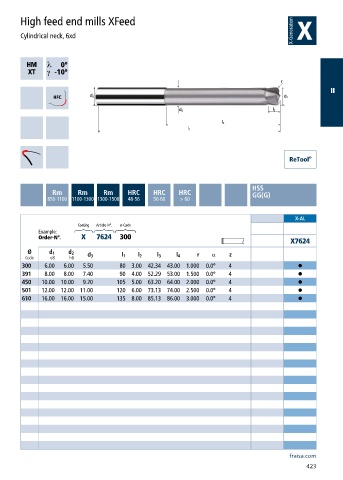

High feed end mills XFeed
Cylindrical neck, 6xd
h ƍ
a ƍ
II
HSS
Rm Rm Rm HRC HRC HRC GG(G)
850-1100 1100-1300 1300-1500 48-56 56-60 > 60
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7624 300
X7624
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
300 6.00 6.00 5.50 80 3.00 42.34 43.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 90 4.00 52.29 53.00 1.500 0.0° 4 •
450 10.00 10.00 9.20 105 5.00 63.20 64.00 2.000 0.0° 4 •
501 12.00 12.00 11.00 120 6.00 73.13 74.00 2.500 0.0° 4 •
610 16.00 16.00 15.00 135 8.00 85.13 86.00 3.000 0.0° 4 •
