a e
v c
a p
d eff
d 1
f z
n
v f

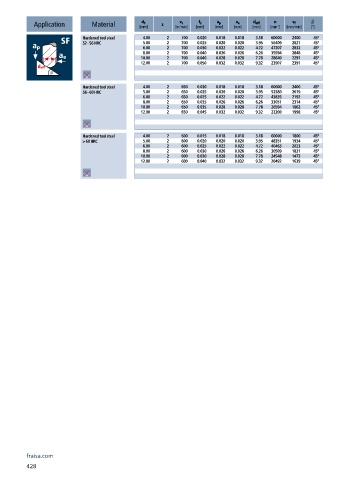

Application Material [mm] z [m/min] [mm] [mm] [mm] [mm] [min ] -1 [mm/min] [°] β
Hardened tool steel 4.00 2 700 0.020 0.018 0.018 3.18 60000 2400 45°
52 - 56 HRC 5.00 2 700 0.025 0.020 0.020 3.95 56409 2821 45°
6.00 2 700 0.030 0.022 0.022 4.72 47207 2832 45°
8.00 2 700 0.040 0.026 0.026 6.26 35594 2848 45°
10.00 2 700 0.040 0.028 0.028 7.78 28640 2291 45°
12.00 2 700 0.050 0.032 0.032 9.32 23907 2391 45°
Hardened tool steel 4.00 2 650 0.020 0.018 0.018 3.18 60000 2400 45°
56 - 60 HRC 5.00 2 650 0.025 0.020 0.020 3.95 52380 2619 45°
6.00 2 650 0.025 0.022 0.022 4.72 43835 2192 45°
8.00 2 650 0.035 0.026 0.026 6.26 33051 2314 45°
10.00 2 650 0.035 0.028 0.028 7.78 26594 1862 45°
12.00 2 650 0.045 0.032 0.032 9.32 22200 1998 45°
Hardened tool steel 4.00 2 600 0.015 0.018 0.018 3.18 60000 1800 45°
> 60 HRC 5.00 2 600 0.020 0.020 0.020 3.95 48351 1934 45°
6.00 2 600 0.025 0.022 0.022 4.72 40463 2023 45°
8.00 2 600 0.030 0.026 0.026 6.26 30509 1831 45°
10.00 2 600 0.030 0.028 0.028 7.78 24548 1473 45°
12.00 2 600 0.040 0.032 0.032 9.32 20492 1639 45°
