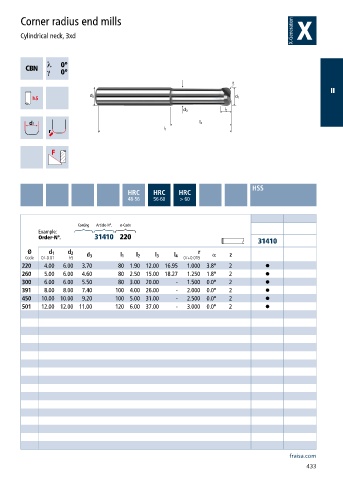

P. 435
Corner radius end mills
Cylindrical neck, 3xd
h ƍ
a ƍ
II
HSS
HRC HRC HRC
48-56 56-60 > 60
Coating Article-N°. ø-Code
Example:
Order-N°. 31410 220
31410
Ø d 1 d 2 r α
Code 0/-0.01 h5 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
220 4.00 6.00 3.70 80 1.90 12.00 16.95 1.000 3.8° 2 •
260 5.00 6.00 4.60 80 2.50 15.00 18.27 1.250 1.8° 2 •
300 6.00 6.00 5.50 80 3.00 20.00 - 1.500 0.0° 2 •
391 8.00 8.00 7.40 100 4.00 26.00 - 2.000 0.0° 2 •
450 10.00 10.00 9.20 100 5.00 31.00 - 2.500 0.0° 2 •
501 12.00 12.00 11.00 120 6.00 37.00 - 3.000 0.0° 2 •
fraisa.com
433
