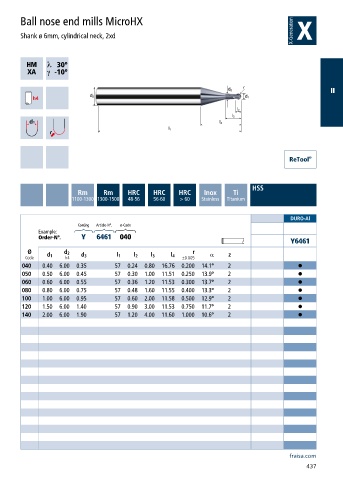

Ball nose end mills MicroHX

Shank ø 6mm, cylindrical neck, 2xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Inox Ti
1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

DURO-Al
Coating Article-N°. ø-Code
Example:
Order-N°. Y 6461 040
Y6461
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
040 0.40 6.00 0.35 57 0.24 0.80 16.76 0.200 14.1° 2 •
050 0.50 6.00 0.45 57 0.30 1.00 11.51 0.250 13.9° 2 •
060 0.60 6.00 0.55 57 0.36 1.20 11.53 0.300 13.7° 2 •
080 0.80 6.00 0.75 57 0.48 1.60 11.55 0.400 13.3° 2 •
100 1.00 6.00 0.95 57 0.60 2.00 11.58 0.500 12.9° 2 •
120 1.50 6.00 1.40 57 0.90 3.00 11.53 0.750 11.7° 2 •
140 2.00 6.00 1.90 57 1.20 4.00 11.60 1.000 10.6° 2 •

fraisa.com
437
