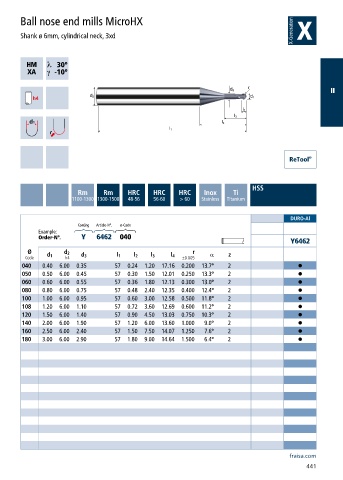

Ball nose end mills MicroHX

Shank ø 6mm, cylindrical neck, 3xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Inox Ti
1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

DURO-Al
Coating Article-N°. ø-Code
Example:
Order-N°. Y 6462 040
Y6462
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
040 0.40 6.00 0.35 57 0.24 1.20 17.16 0.200 13.7° 2 •
050 0.50 6.00 0.45 57 0.30 1.50 12.01 0.250 13.3° 2 •
060 0.60 6.00 0.55 57 0.36 1.80 12.13 0.300 13.0° 2 •
080 0.80 6.00 0.75 57 0.48 2.40 12.35 0.400 12.4° 2 •
100 1.00 6.00 0.95 57 0.60 3.00 12.58 0.500 11.8° 2 •
108 1.20 6.00 1.10 57 0.72 3.60 12.69 0.600 11.2° 2 •
120 1.50 6.00 1.40 57 0.90 4.50 13.03 0.750 10.3° 2 •
140 2.00 6.00 1.90 57 1.20 6.00 13.60 1.000 9.0° 2 •
160 2.50 6.00 2.40 57 1.50 7.50 14.07 1.250 7.6° 2 •
180 3.00 6.00 2.90 57 1.80 9.00 14.64 1.500 6.4° 2 •
