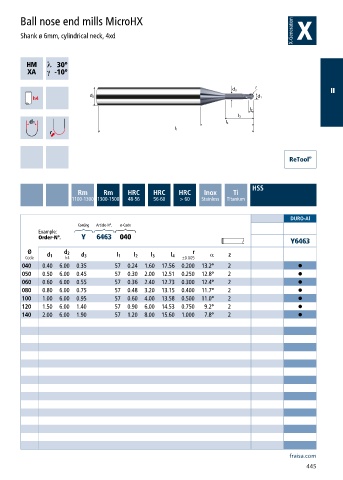

Ball nose end mills MicroHX

Shank ø 6mm, cylindrical neck, 4xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Inox Ti
1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

DURO-Al
Coating Article-N°. ø-Code
Example:
Order-N°. Y 6463 040
Y6463
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
040 0.40 6.00 0.35 57 0.24 1.60 17.56 0.200 13.2° 2 •
050 0.50 6.00 0.45 57 0.30 2.00 12.51 0.250 12.8° 2 •
060 0.60 6.00 0.55 57 0.36 2.40 12.73 0.300 12.4° 2 •
080 0.80 6.00 0.75 57 0.48 3.20 13.15 0.400 11.7° 2 •
100 1.00 6.00 0.95 57 0.60 4.00 13.58 0.500 11.0° 2 •
120 1.50 6.00 1.40 57 0.90 6.00 14.53 0.750 9.2° 2 •
140 2.00 6.00 1.90 57 1.20 8.00 15.60 1.000 7.8° 2 •
