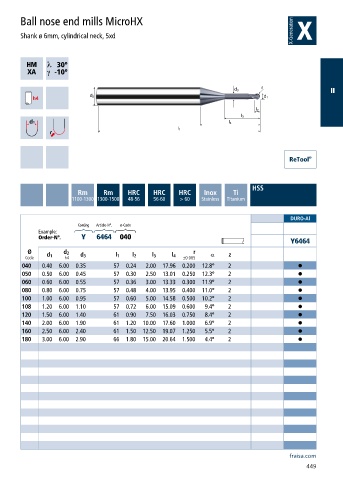

Ball nose end mills MicroHX

Shank ø 6mm, cylindrical neck, 5xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Inox Ti
1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

DURO-Al
Coating Article-N°. ø-Code
Example:
Order-N°. Y 6464 040
Y6464
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
040 0.40 6.00 0.35 57 0.24 2.00 17.96 0.200 12.8° 2 •
050 0.50 6.00 0.45 57 0.30 2.50 13.01 0.250 12.3° 2 •
060 0.60 6.00 0.55 57 0.36 3.00 13.33 0.300 11.9° 2 •
080 0.80 6.00 0.75 57 0.48 4.00 13.95 0.400 11.0° 2 •
100 1.00 6.00 0.95 57 0.60 5.00 14.58 0.500 10.2° 2 •
108 1.20 6.00 1.10 57 0.72 6.00 15.09 0.600 9.4° 2 •
120 1.50 6.00 1.40 61 0.90 7.50 16.03 0.750 8.4° 2 •
140 2.00 6.00 1.90 61 1.20 10.00 17.60 1.000 6.9° 2 •
160 2.50 6.00 2.40 61 1.50 12.50 19.07 1.250 5.5° 2 •
180 3.00 6.00 2.90 66 1.80 15.00 20.64 1.500 4.4° 2 •
