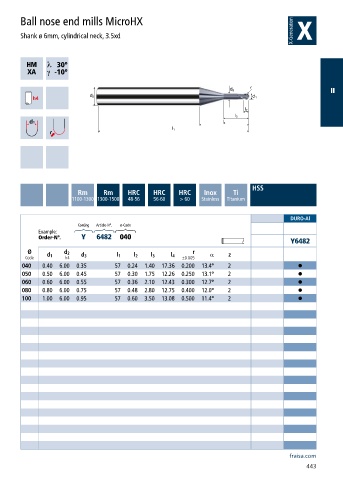

Ball nose end mills MicroHX
Shank ø 6mm, cylindrical neck, 3.5xd
h ƍ
a ƍ
II
HSS
Rm Rm HRC HRC HRC Inox Ti
1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium
DURO-Al
Coating Article-N°. ø-Code
Example:
Order-N°. Y 6482 040
Y6482
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
040 0.40 6.00 0.35 57 0.24 1.40 17.36 0.200 13.4° 2 •
050 0.50 6.00 0.45 57 0.30 1.75 12.26 0.250 13.1° 2 •
060 0.60 6.00 0.55 57 0.36 2.10 12.43 0.300 12.7° 2 •
080 0.80 6.00 0.75 57 0.48 2.80 12.75 0.400 12.0° 2 •
100 1.00 6.00 0.95 57 0.60 3.50 13.08 0.500 11.4° 2 •
