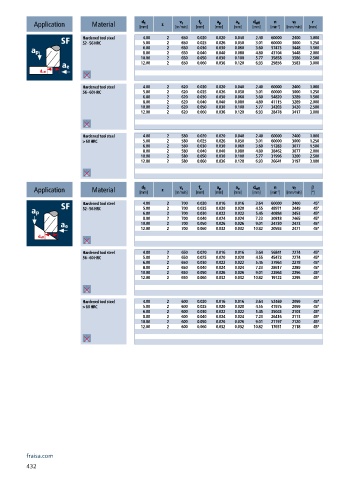

Page 434 - 21-036 APPLITEC catalogue.indb

f z
a p
d 1
v c
a e
v f
r
d eff
n
Application Material [mm] z [m/min] [mm] [mm] [mm] [mm] [min ] -1 [mm/min] [mm]
Hardened tool steel 4.00 2 650 0.020 0.020 0.040 2.40 60000 2400 1.000
52 - 56 HRC 5.00 2 650 0.025 0.026 0.050 3.01 60000 3000 1.250
6.00 2 650 0.030 0.030 0.060 3.60 57473 3448 1.500
8.00 2 650 0.040 0.040 0.080 4.80 43104 3448 2.000
10.00 2 650 0.050 0.030 0.100 5.77 35858 3586 2.500
12.00 2 650 0.060 0.036 0.120 6.93 29856 3583 3.000
Hardened tool steel 4.00 2 620 0.020 0.020 0.040 2.40 60000 2400 1.000
56 - 60 HRC 5.00 2 620 0.025 0.026 0.050 3.01 60000 3000 1.250
6.00 2 620 0.030 0.030 0.060 3.60 54820 3289 1.500
8.00 2 620 0.040 0.040 0.080 4.80 41115 3289 2.000
10.00 2 620 0.050 0.030 0.100 5.77 34203 3420 2.500
12.00 2 620 0.060 0.036 0.120 6.93 28478 3417 3.000
Hardened tool steel 4.00 2 580 0.020 0.020 0.040 2.40 60000 2400 1.000
> 60 HRC 5.00 2 580 0.025 0.026 0.050 3.01 60000 3000 1.250
6.00 2 580 0.030 0.030 0.060 3.60 51283 3077 1.500
8.00 2 580 0.040 0.040 0.080 4.80 38462 3077 2.000
10.00 2 580 0.050 0.030 0.100 5.77 31996 3200 2.500
12.00 2 580 0.060 0.036 0.120 6.93 26641 3197 3.000
a p
f z
v c
d eff
n
v f
d 1
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [mm] [min ] -1 [mm/min] [°] β
Hardened tool steel 4.00 2 700 0.020 0.016 0.016 3.64 60000 2400 45°
52 - 56 HRC 5.00 2 700 0.025 0.020 0.020 4.55 48971 2449 45°
6.00 2 700 0.030 0.022 0.022 5.45 40884 2453 45°
8.00 2 700 0.040 0.024 0.024 7.23 30818 2465 45°
10.00 2 700 0.050 0.026 0.026 9.01 24730 2473 45°
12.00 2 700 0.060 0.032 0.032 10.82 20593 2471 45°
Hardened tool steel 4.00 2 650 0.020 0.016 0.016 3.64 56841 2274 45°
56 - 60 HRC 5.00 2 650 0.025 0.020 0.020 4.55 45473 2274 45°
6.00 2 650 0.030 0.022 0.022 5.45 37964 2278 45°
8.00 2 650 0.040 0.024 0.024 7.23 28617 2289 45°
10.00 2 650 0.050 0.026 0.026 9.01 22964 2296 45°
12.00 2 650 0.060 0.032 0.032 10.82 19122 2295 45°
Hardened tool steel 4.00 2 600 0.020 0.016 0.016 3.64 52469 2099 45°
> 60 HRC 5.00 2 600 0.025 0.020 0.020 4.55 41975 2099 45°
6.00 2 600 0.030 0.022 0.022 5.45 35043 2103 45°
8.00 2 600 0.040 0.024 0.024 7.23 26416 2113 45°
10.00 2 600 0.050 0.026 0.026 9.01 21197 2120 45°
12.00 2 600 0.060 0.032 0.032 10.82 17651 2118 45°
