P. 427

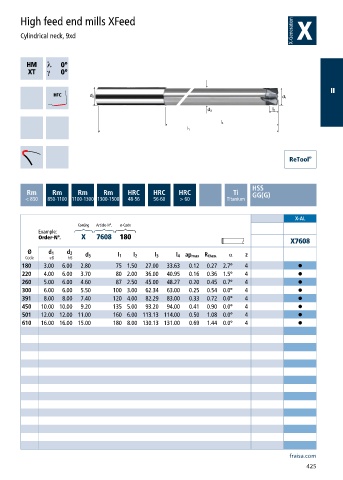

High feed end mills XFeed
Cylindrical neck, 9xd
h ƍ
a ƍ
II
HSS
Rm Rm Rm Rm HRC HRC HRC Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7608 180
X7608
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 ap max R theo. z
180 3.00 6.00 2.80 75 1.50 27.00 33.63 0.12 0.27 2.7° 4 •
220 4.00 6.00 3.70 80 2.00 36.00 40.95 0.16 0.36 1.5° 4 •
260 5.00 6.00 4.60 87 2.50 45.00 48.27 0.20 0.45 0.7° 4 •
300 6.00 6.00 5.50 100 3.00 62.34 63.00 0.25 0.54 0.0° 4 •
391 8.00 8.00 7.40 120 4.00 82.29 83.00 0.33 0.72 0.0° 4 •
450 10.00 10.00 9.20 135 5.00 93.20 94.00 0.41 0.90 0.0° 4 •
501 12.00 12.00 11.00 160 6.00 113.13 114.00 0.50 1.08 0.0° 4 •
610 16.00 16.00 15.00 180 8.00 130.13 131.00 0.69 1.44 0.0° 4 •
