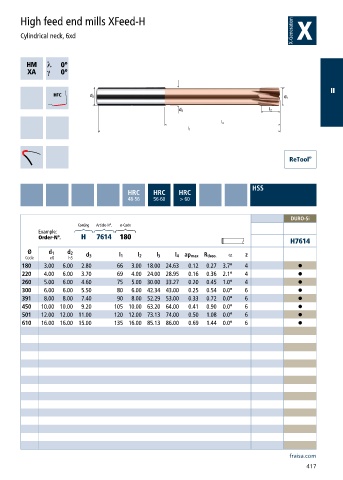

High feed end mills XFeed-H
Cylindrical neck, 6xd
h ƍ
a ƍ
II
HSS
HRC HRC HRC
48-56 56-60 > 60
DURO-Si
Coating Article-N°. ø-Code
Example:
Order-N°. H 7614 180
H7614
Ø d 1 d 2 α
Code e8 h5 d 3 l 1 l 2 l 3 l 4 ap max R theo. z
180 3.00 6.00 2.80 66 3.00 18.00 24.63 0.12 0.27 3.7° 4 •
220 4.00 6.00 3.70 69 4.00 24.00 28.95 0.16 0.36 2.1° 4 •
260 5.00 6.00 4.60 75 5.00 30.00 33.27 0.20 0.45 1.0° 4 •
300 6.00 6.00 5.50 80 6.00 42.34 43.00 0.25 0.54 0.0° 6 •
391 8.00 8.00 7.40 90 8.00 52.29 53.00 0.33 0.72 0.0° 6 •
450 10.00 10.00 9.20 105 10.00 63.20 64.00 0.41 0.90 0.0° 6 •
501 12.00 12.00 11.00 120 12.00 73.13 74.00 0.50 1.08 0.0° 6 •
610 16.00 16.00 15.00 135 16.00 85.13 86.00 0.69 1.44 0.0° 6 •
