P. 41

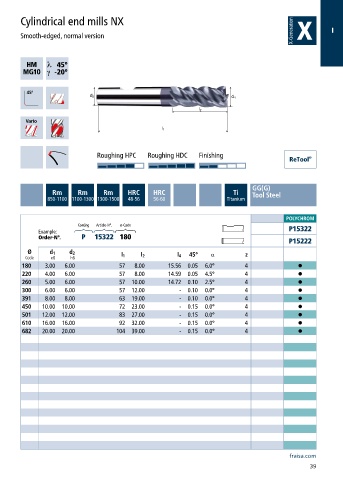

Cylindrical end mills NX
I
Smooth-edged, normal version
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm HRC HRC Ti Tool Steel
850-1100 1100-1300 1300-1500 48-56 56-60 Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P15322
Order-N°. P 15322 180
P15222
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 45° z
180 3.00 6.00 57 8.00 15.56 0.05 6.0° 4 •
220 4.00 6.00 57 8.00 14.59 0.05 4.5° 4 •
260 5.00 6.00 57 10.00 14.72 0.10 2.5° 4 •
300 6.00 6.00 57 12.00 - 0.10 0.0° 4 •
391 8.00 8.00 63 19.00 - 0.10 0.0° 4 •
450 10.00 10.00 72 23.00 - 0.15 0.0° 4 •
501 12.00 12.00 83 27.00 - 0.15 0.0° 4 •
610 16.00 16.00 92 32.00 - 0.15 0.0° 4 •
682 20.00 20.00 104 39.00 - 0.15 0.0° 4 •
fraisa.com
39
