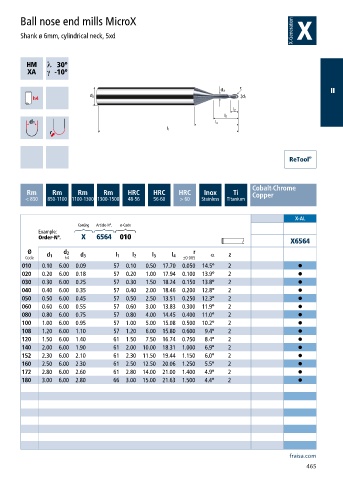

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 5xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6564 010
X6564
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
010 0.10 6.00 0.09 57 0.10 0.50 17.70 0.050 14.5° 2 •
020 0.20 6.00 0.18 57 0.20 1.00 17.94 0.100 13.9° 2 •
030 0.30 6.00 0.25 57 0.30 1.50 18.24 0.150 13.8° 2 •
040 0.40 6.00 0.35 57 0.40 2.00 18.46 0.200 12.8° 2 •
050 0.50 6.00 0.45 57 0.50 2.50 13.51 0.250 12.3° 2 •
060 0.60 6.00 0.55 57 0.60 3.00 13.83 0.300 11.9° 2 •
080 0.80 6.00 0.75 57 0.80 4.00 14.45 0.400 11.0° 2 •
100 1.00 6.00 0.95 57 1.00 5.00 15.08 0.500 10.2° 2 •
108 1.20 6.00 1.10 57 1.20 6.00 15.80 0.600 9.4° 2 •
120 1.50 6.00 1.40 61 1.50 7.50 16.74 0.750 8.4° 2 •
140 2.00 6.00 1.90 61 2.00 10.00 18.31 1.000 6.9° 2 •
152 2.30 6.00 2.10 61 2.30 11.50 19.44 1.150 6.0° 2 •
160 2.50 6.00 2.30 61 2.50 12.50 20.06 1.250 5.5° 2 •
172 2.80 6.00 2.60 61 2.80 14.00 21.00 1.400 4.9° 2 •
180 3.00 6.00 2.80 66 3.00 15.00 21.63 1.500 4.4° 2 •
