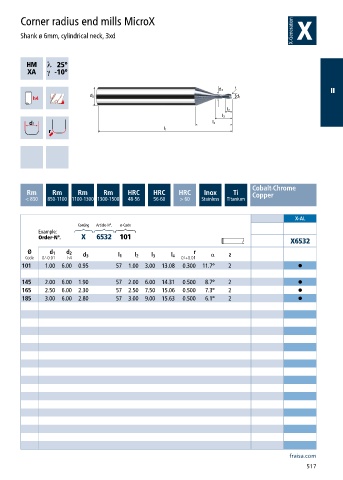

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 3xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6532 101
X6532
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
101 1.00 6.00 0.95 57 1.00 3.00 13.08 0.300 11.7° 2 •
145 2.00 6.00 1.90 57 2.00 6.00 14.31 0.500 8.7° 2 •
165 2.50 6.00 2.30 57 2.50 7.50 15.06 0.500 7.3° 2 •
185 3.00 6.00 2.80 57 3.00 9.00 15.63 0.500 6.1° 2 •
