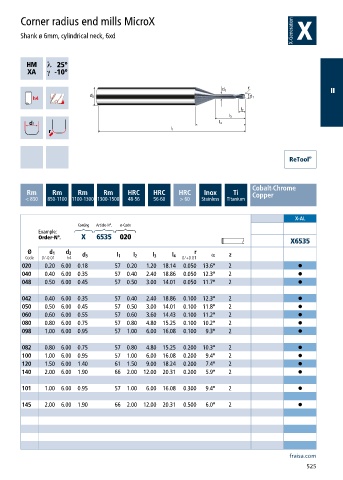

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 6xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6535 020
X6535
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
020 0.20 6.00 0.18 57 0.20 1.20 18.14 0.050 13.6° 2 •
040 0.40 6.00 0.35 57 0.40 2.40 18.86 0.050 12.3° 2 •
048 0.50 6.00 0.45 57 0.50 3.00 14.01 0.050 11.7° 2 •

042 0.40 6.00 0.35 57 0.40 2.40 18.86 0.100 12.3° 2 •
050 0.50 6.00 0.45 57 0.50 3.00 14.01 0.100 11.8° 2 •
060 0.60 6.00 0.55 57 0.60 3.60 14.43 0.100 11.2° 2 •
080 0.80 6.00 0.75 57 0.80 4.80 15.25 0.100 10.2° 2 •
098 1.00 6.00 0.95 57 1.00 6.00 16.08 0.100 9.3° 2 •

082 0.80 6.00 0.75 57 0.80 4.80 15.25 0.200 10.3° 2 •
100 1.00 6.00 0.95 57 1.00 6.00 16.08 0.200 9.4° 2 •
120 1.50 6.00 1.40 61 1.50 9.00 18.24 0.200 7.4° 2 •
140 2.00 6.00 1.90 66 2.00 12.00 20.31 0.200 5.9° 2 •

101 1.00 6.00 0.95 57 1.00 6.00 16.08 0.300 9.4° 2 •

145 2.00 6.00 1.90 66 2.00 12.00 20.31 0.500 6.0° 2 •

fraisa.com
