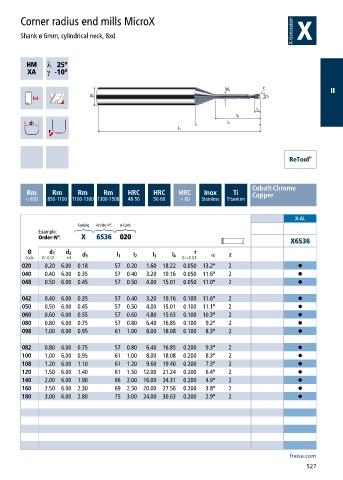

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 8xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6536 020
X6536
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
020 0.20 6.00 0.18 57 0.20 1.60 18.22 0.050 13.2° 2 •
040 0.40 6.00 0.35 57 0.40 3.20 19.16 0.050 11.6° 2 •
048 0.50 6.00 0.45 57 0.50 4.00 15.01 0.050 11.0° 2 •

042 0.40 6.00 0.35 57 0.40 3.20 19.16 0.100 11.6° 2 •
050 0.50 6.00 0.45 57 0.50 4.00 15.01 0.100 11.1° 2 •
060 0.60 6.00 0.55 57 0.60 4.80 15.63 0.100 10.3° 2 •
080 0.80 6.00 0.75 57 0.80 6.40 16.85 0.100 9.2° 2 •
098 1.00 6.00 0.95 61 1.00 8.00 18.08 0.100 8.3° 2 •

082 0.80 6.00 0.75 57 0.80 6.40 16.85 0.200 9.3° 2 •
100 1.00 6.00 0.95 61 1.00 8.00 18.08 0.200 8.3° 2 •
108 1.20 6.00 1.10 61 1.20 9.60 19.40 0.200 7.3° 2 •
120 1.50 6.00 1.40 61 1.50 12.00 21.24 0.200 6.4° 2 •
140 2.00 6.00 1.90 66 2.00 16.00 24.31 0.200 4.9° 2 •
160 2.50 6.00 2.30 69 2.50 20.00 27.56 0.200 3.8° 2 •
180 3.00 6.00 2.80 75 3.00 24.00 30.63 0.200 2.9° 2 •
