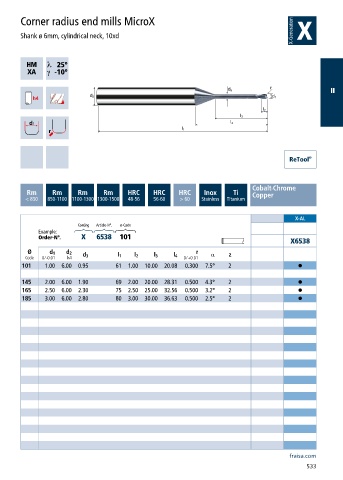

Corner radius end mills MicroX
Shank ø 6mm, cylindrical neck, 10xd
h ƍ
a ƍ
II
Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6538 101
X6538
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
101 1.00 6.00 0.95 61 1.00 10.00 20.08 0.300 7.5° 2 •
145 2.00 6.00 1.90 69 2.00 20.00 28.31 0.500 4.3° 2 •
165 2.50 6.00 2.30 75 2.50 25.00 32.56 0.500 3.2° 2 •
185 3.00 6.00 2.80 80 3.00 30.00 36.63 0.500 2.5° 2 •
