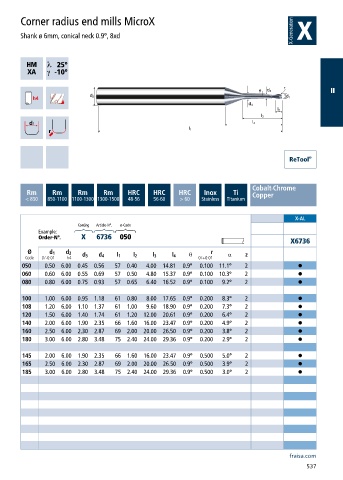

Corner radius end mills MicroX

Shank ø 6mm, conical neck 0.9°, 8xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6736 050
X6736
Ø d 1 d 2 q r α
Code 0/-0.01 h4 d 3 d 4 l 1 l 2 l 3 l 4 0/+0.01 z
050 0.50 6.00 0.45 0.56 57 0.40 4.00 14.81 0.9° 0.100 11.1° 2 •
060 0.60 6.00 0.55 0.69 57 0.50 4.80 15.37 0.9° 0.100 10.3° 2 •
080 0.80 6.00 0.75 0.93 57 0.65 6.40 16.52 0.9° 0.100 9.2° 2 •

100 1.00 6.00 0.95 1.18 61 0.80 8.00 17.65 0.9° 0.200 8.3° 2 •
108 1.20 6.00 1.10 1.37 61 1.00 9.60 18.90 0.9° 0.200 7.3° 2 •
120 1.50 6.00 1.40 1.74 61 1.20 12.00 20.61 0.9° 0.200 6.4° 2 •
140 2.00 6.00 1.90 2.35 66 1.60 16.00 23.47 0.9° 0.200 4.9° 2 •
160 2.50 6.00 2.30 2.87 69 2.00 20.00 26.50 0.9° 0.200 3.8° 2 •
180 3.00 6.00 2.80 3.48 75 2.40 24.00 29.36 0.9° 0.200 2.9° 2 •

145 2.00 6.00 1.90 2.35 66 1.60 16.00 23.47 0.9° 0.500 5.0° 2 •
165 2.50 6.00 2.30 2.87 69 2.00 20.00 26.50 0.9° 0.500 3.9° 2 •
185 3.00 6.00 2.80 3.48 75 2.40 24.00 29.36 0.9° 0.500 3.0° 2 •
