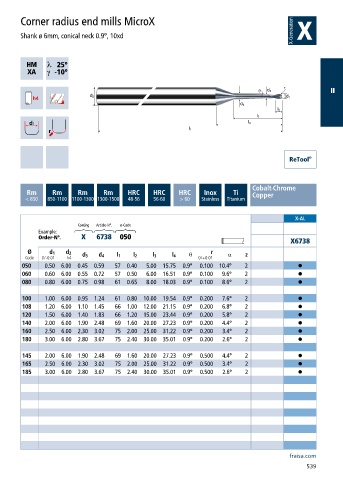

Corner radius end mills MicroX

Shank ø 6mm, conical neck 0.9°, 10xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6738 050
X6738
Ø d 1 d 2 q r α
Code 0/-0.01 h4 d 3 d 4 l 1 l 2 l 3 l 4 0/+0.01 z
050 0.50 6.00 0.45 0.59 57 0.40 5.00 15.75 0.9° 0.100 10.4° 2 •
060 0.60 6.00 0.55 0.72 57 0.50 6.00 16.51 0.9° 0.100 9.6° 2 •
080 0.80 6.00 0.75 0.98 61 0.65 8.00 18.03 0.9° 0.100 8.6° 2 •

100 1.00 6.00 0.95 1.24 61 0.80 10.00 19.54 0.9° 0.200 7.6° 2 •
108 1.20 6.00 1.10 1.45 66 1.00 12.00 21.15 0.9° 0.200 6.8° 2 •
120 1.50 6.00 1.40 1.83 66 1.20 15.00 23.44 0.9° 0.200 5.8° 2 •
140 2.00 6.00 1.90 2.48 69 1.60 20.00 27.23 0.9° 0.200 4.4° 2 •
160 2.50 6.00 2.30 3.02 75 2.00 25.00 31.22 0.9° 0.200 3.4° 2 •
180 3.00 6.00 2.80 3.67 75 2.40 30.00 35.01 0.9° 0.200 2.6° 2 •

145 2.00 6.00 1.90 2.48 69 1.60 20.00 27.23 0.9° 0.500 4.4° 2 •
165 2.50 6.00 2.30 3.02 75 2.00 25.00 31.22 0.9° 0.500 3.4° 2 •
185 3.00 6.00 2.80 3.67 75 2.40 30.00 35.01 0.9° 0.500 2.6° 2 •
