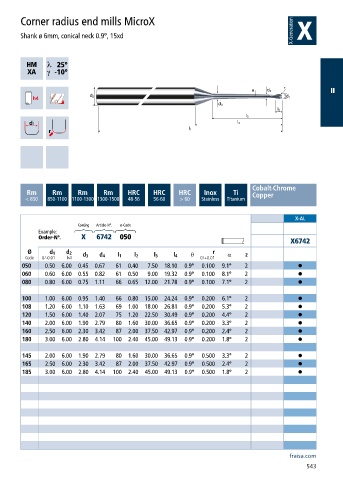

Corner radius end mills MicroX

Shank ø 6mm, conical neck 0.9°, 15xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6742 050
X6742
Ø d 1 d 2 q r α
Code 0/-0.01 h4 d 3 d 4 l 1 l 2 l 3 l 4 0/+0.01 z
050 0.50 6.00 0.45 0.67 61 0.40 7.50 18.10 0.9° 0.100 9.1° 2 •
060 0.60 6.00 0.55 0.82 61 0.50 9.00 19.32 0.9° 0.100 8.1° 2 •
080 0.80 6.00 0.75 1.11 66 0.65 12.00 21.78 0.9° 0.100 7.1° 2 •

100 1.00 6.00 0.95 1.40 66 0.80 15.00 24.24 0.9° 0.200 6.1° 2 •
108 1.20 6.00 1.10 1.63 69 1.00 18.00 26.81 0.9° 0.200 5.3° 2 •
120 1.50 6.00 1.40 2.07 75 1.20 22.50 30.49 0.9° 0.200 4.4° 2 •
140 2.00 6.00 1.90 2.79 80 1.60 30.00 36.65 0.9° 0.200 3.3° 2 •
160 2.50 6.00 2.30 3.42 87 2.00 37.50 42.97 0.9° 0.200 2.4° 2 •
180 3.00 6.00 2.80 4.14 100 2.40 45.00 49.13 0.9° 0.200 1.8° 2 •

145 2.00 6.00 1.90 2.79 80 1.60 30.00 36.65 0.9° 0.500 3.3° 2 •
165 2.50 6.00 2.30 3.42 87 2.00 37.50 42.97 0.9° 0.500 2.4° 2 •
185 3.00 6.00 2.80 4.14 100 2.40 45.00 49.13 0.9° 0.500 1.8° 2 •
