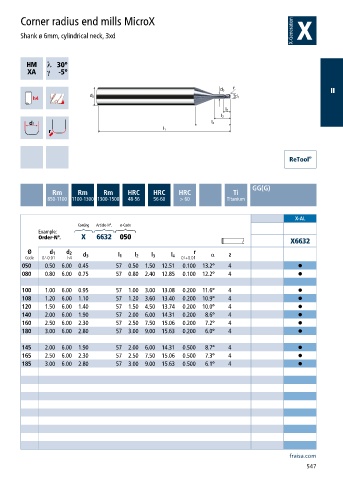

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 3xd

h ƍ
a ƍ

II

GG(G)
Rm Rm Rm HRC HRC HRC Ti
850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6632 050
X6632
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
050 0.50 6.00 0.45 57 0.50 1.50 12.51 0.100 13.2° 4 •
080 0.80 6.00 0.75 57 0.80 2.40 12.85 0.100 12.2° 4 •

100 1.00 6.00 0.95 57 1.00 3.00 13.08 0.200 11.6° 4 •
108 1.20 6.00 1.10 57 1.20 3.60 13.40 0.200 10.9° 4 •
120 1.50 6.00 1.40 57 1.50 4.50 13.74 0.200 10.0° 4 •
140 2.00 6.00 1.90 57 2.00 6.00 14.31 0.200 8.6° 4 •
160 2.50 6.00 2.30 57 2.50 7.50 15.06 0.200 7.2° 4 •
180 3.00 6.00 2.80 57 3.00 9.00 15.63 0.200 6.0° 4 •

145 2.00 6.00 1.90 57 2.00 6.00 14.31 0.500 8.7° 4 •
165 2.50 6.00 2.30 57 2.50 7.50 15.06 0.500 7.3° 4 •
185 3.00 6.00 2.80 57 3.00 9.00 15.63 0.500 6.1° 4 •
