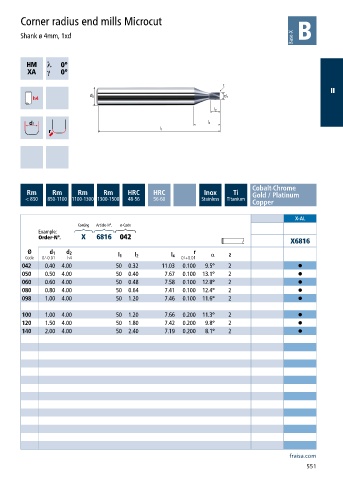

Corner radius end mills Microcut
Shank ø 4mm, 1xd
h ƍ
a ƍ
II
Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6816 042
X6816
Ø d 1 d 2 r α
Code 0/-0.01 h4 l 1 l 2 l 4 0/+0.01 z
042 0.40 4.00 50 0.32 11.03 0.100 9.5° 2 •
050 0.50 4.00 50 0.40 7.67 0.100 13.1° 2 •
060 0.60 4.00 50 0.48 7.58 0.100 12.8° 2 •
080 0.80 4.00 50 0.64 7.41 0.100 12.4° 2 •
098 1.00 4.00 50 1.20 7.46 0.100 11.6° 2 •
100 1.00 4.00 50 1.20 7.66 0.200 11.3° 2 •
120 1.50 4.00 50 1.80 7.42 0.200 9.8° 2 •
140 2.00 4.00 50 2.40 7.19 0.200 8.1° 2 •
