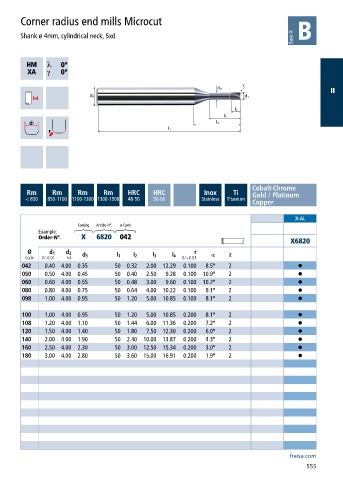

Corner radius end mills Microcut

Shank ø 4mm, cylindrical neck, 5xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6820 042
X6820
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
042 0.40 4.00 0.35 50 0.32 2.00 12.29 0.100 8.5° 2 •
050 0.50 4.00 0.45 50 0.40 2.50 9.28 0.100 10.9° 2 •
060 0.60 4.00 0.55 50 0.48 3.00 9.60 0.100 10.2° 2 •
080 0.80 4.00 0.75 50 0.64 4.00 10.22 0.100 9.1° 2 •
098 1.00 4.00 0.95 50 1.20 5.00 10.85 0.100 8.1° 2 •

100 1.00 4.00 0.95 50 1.20 5.00 10.85 0.200 8.1° 2 •
108 1.20 4.00 1.10 50 1.44 6.00 11.36 0.200 7.2° 2 •
120 1.50 4.00 1.40 50 1.80 7.50 12.30 0.200 6.0° 2 •
140 2.00 4.00 1.90 50 2.40 10.00 13.87 0.200 4.3° 2 •
160 2.50 4.00 2.30 50 3.00 12.50 15.34 0.200 3.0° 2 •
180 3.00 4.00 2.80 50 3.60 15.00 16.91 0.200 1.9° 2 •
