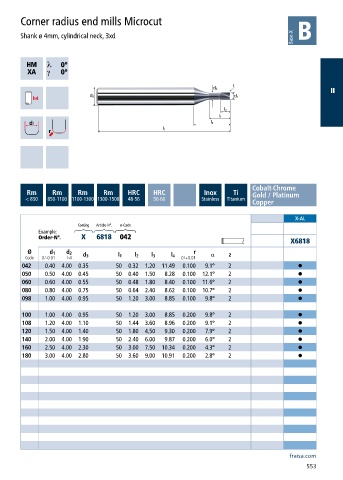

Corner radius end mills Microcut

Shank ø 4mm, cylindrical neck, 3xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6818 042
X6818
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.01 z
042 0.40 4.00 0.35 50 0.32 1.20 11.49 0.100 9.1° 2 •
050 0.50 4.00 0.45 50 0.40 1.50 8.28 0.100 12.1° 2 •
060 0.60 4.00 0.55 50 0.48 1.80 8.40 0.100 11.6° 2 •
080 0.80 4.00 0.75 50 0.64 2.40 8.62 0.100 10.7° 2 •
098 1.00 4.00 0.95 50 1.20 3.00 8.85 0.100 9.8° 2 •

100 1.00 4.00 0.95 50 1.20 3.00 8.85 0.200 9.8° 2 •
108 1.20 4.00 1.10 50 1.44 3.60 8.96 0.200 9.1° 2 •
120 1.50 4.00 1.40 50 1.80 4.50 9.30 0.200 7.9° 2 •
140 2.00 4.00 1.90 50 2.40 6.00 9.87 0.200 6.0° 2 •
160 2.50 4.00 2.30 50 3.00 7.50 10.34 0.200 4.3° 2 •
180 3.00 4.00 2.80 50 3.60 9.00 10.91 0.200 2.8° 2 •
