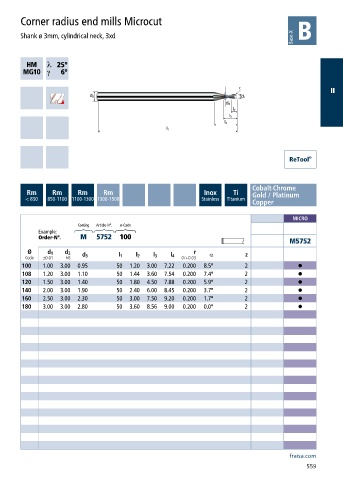

Corner radius end mills Microcut
Shank ø 3mm, cylindrical neck, 3xd
h ƍ
a ƍ
II
Cobalt-Chrome
Rm Rm Rm Rm Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Copper
MICRO
Coating Article-N°. ø-Code
Example:
Order-N°. M 5752 100
M5752
Ø d 1 d 2 r α
Code ±0.01 h6 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
100 1.00 3.00 0.95 50 1.20 3.00 7.22 0.200 8.5° 2 •
108 1.20 3.00 1.10 50 1.44 3.60 7.54 0.200 7.4° 2 •
120 1.50 3.00 1.40 50 1.80 4.50 7.88 0.200 5.9° 2 •
140 2.00 3.00 1.90 50 2.40 6.00 8.45 0.200 3.7° 2 •
160 2.50 3.00 2.30 50 3.00 7.50 9.20 0.200 1.7° 2 •
180 3.00 3.00 2.80 50 3.60 8.56 9.00 0.200 0.0° 2 •
